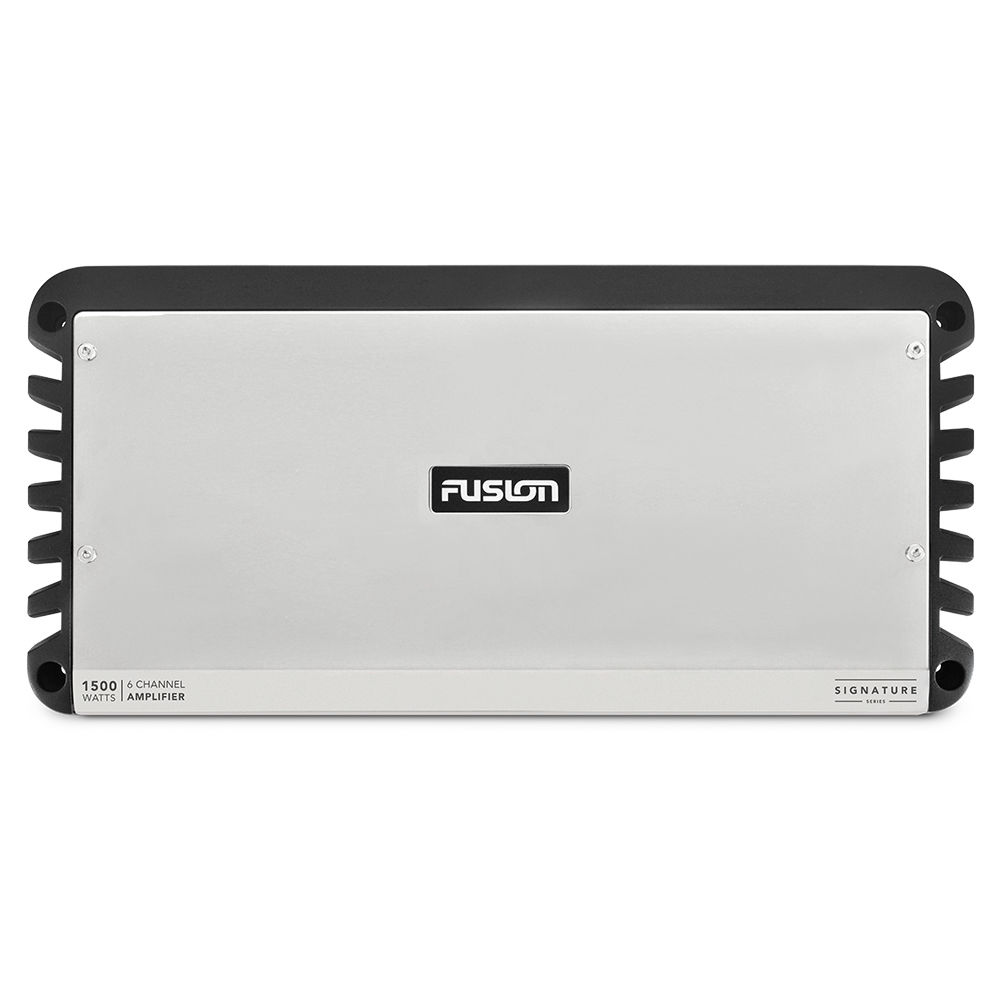

Fusion® Signature Series Marine Amplifier

Fusion SG-24DA61500 Signature Series 24-Volt 6-Channel Marine Amplifier 1500 Watt

Class-D Amplifier Technology

• 1500-Watt Peak Power
• Marine-Ready Design with Conformal Coated PCBs
• Rigid Aluminum Alloy Heat Sink
• Stainless Steel Mirror Finish
• Speaker Configuration
• Zone Designation
• True-Marine Design

This new Signature Series 24-volt 6-channel marine amplifier is designed for boats operating on 24-volt electrical systems. With a peak power of 1500-watts, it provides incredible power delivery to your onboard audio entertainment. The plug-and-play setup allows for easy installation without the need for an additional power adaptor.

Fusion Signature Series amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver a Signature performance on the water like never before.

Class-D Amplifier Technology: The highly efficient Class-D design provides 1500-watt peak power while drawing less current than a standard Class-AB amplifier. This design provides increased efficiency and power output to your speakers and subwoofers, letting you enjoy your music for longer without needing to worry about battery drain.

1500-Watt Peak Power: With a peak power of 1500-watts, you can easily power up to 6 pairs of speakers OR up to 4 pairs of speakers and 1 subwoofer.

Marine-Ready Design with Conformal Coated PCBs: Extending the life of your amplifiers, the Signature Series amplifiers are designed specifically for marine use with conformal coated PCBs to provide extra protection from the marine elements.

Rigid Aluminum Alloy Heat Sink: Molded to form a singular die-cast chassis, the fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.

Stainless Steel Mirror Finish: The polished stainless steel control panel cover conceals and helps protect all cable connections and the settings control panel while providing an attractive finish to complement any installation.

Speaker Configuration: Whether you require 2 ohms per channel or 4 ohms bridged, the Signature Series amplifier has your installation options covered to achieve optimum output levels. Connect up to 2 speakers per channel (2 x 4 ohm speakers in parallel) with the SG-24DA61500.

Zone Designation: To align with the Fusion Entertainment System Zone philosophy, the input and output connections are labeled as zones.

True-Marine Design: Signature Series amplifiers are perfect for the marine environment and carry a 3-year warranty.

Our most efficient, stunning and powerful amplifier series features Class-D technology. The highly efficient 1500-watt amplifier design ensures lower battery drain with a higher output in comparison with Class-AB amplifiers. This delivers increased power to the connected speakers and/or subwoofers, extending your audio entertainment experience to a whole new level.

Frequency Response	10 Hz to 40 kHz (-3dB @ 4 Ohm rated power)
Peak Power Output	1500 W
Rated Power Output (4 Ohm)	100 W rms x 6 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Rated Power Output (2 Ohm)	140 W rms x 6 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Rated Power Output (4 Ohm Bridged)	280 W rms x 3 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)
Input Sensitivity	0.3 V to 8 V rms, user adjustable
Input Impedance	7k Ohm nominal
High-Pass/Low-Pass Full Range Filter	Yes, user selectable
Filter Cross-Over Frequency	32 Hz to 320 Hz, user adjustable
Bass-Boost	0 to 9 dB, user adjustable (zone 3 only)
Operating Voltage	21.6 V to 32 V dc
Remote Switch-On	Yes - 6 V threshold
Current Consumption (Standby)	< 1 mA @ 28.8 V input
Current Consumption (Idle)	< 1.25 A @ 28.8 V input
Current Consumption (Max)	35 A @ 28.8 V input
Fuse Rating	3 x 20 A ATC Blade-Type (SAE J1171 Compliant)
Protection Circuits	Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit
Operating Temperature Range	0 to 50°C (32 to 122°F)
Ingress Protection Rating	Dry area installation only
Dimensions	420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9-16" (L) x 8-1/4" (W) x 2-1/4" (H)
Weight	5.15 kg or 11.35 lb with cover
Warranty	3 years

• 24DA61500 Signature Series 24-Volt 6-Channel Marine Amplifier
• Four 8-gauge, self-tapping screws
• 3 mm hex key (for the top cover and power terminals)
• 2.5 mm hex key (for the speaker terminals)
• Polishing cloth
• Spare J1171 compliant 20 A blade-type fuses (only included with 24-Volt Signature Series 6 Channel 1500-Watt amplifier)
