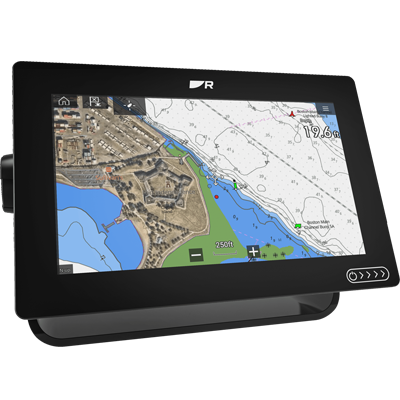

Raymarine Axiom+ Multi-Function Display

Raymarine Axiom+ Multi-Function Display

Designed for speed, responsiveness, and future expansion

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar. New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Performance Tuned Fluid and fast chart redraw of new Raymarine LightHouse Charts, plus Navionics and C-MAP. Smart and intuitive LightHouse 3 OS makes navigating easy. Powerful quad-core processor, plus increased onboard storage for personal data and apps. ClearCruise Augmented Reality-capable for smarter navigation decisions.

Maximum Visibility Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls. All-weather displays are 25 percent brighter (up to 1,800 nits). IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.

Simply Powerful Network with multiple Axiom displays, radars, sonar, AIS, satellite audio and weather, and more. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

RV models include built-in sonar with CHIRP, DownVision, SideVision, and RealVision 3D modes for the most comprehensive view of the underwater world.

Display	9" High Density IPS Multi-Touch LCD
Resolution	1280 x 720 pixels
Antenna	Internal 28 channel, GPS/GNSS, 10Hz. Optional external antenna.
Mapping	Preloaded Navionics+ North America charts. Compatible with Lighthouse, Navionics, and C-Map vis Micro-SD card.
Waypoints/Routes	10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts. 16 GB internal membory
Sounder	Built-in CHIRP, DownVision, SideVision, RealVision 3D Sonar, transducer sold separately
Radar	Available Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
Interface	Ehternet/Raynet, NMEA2000/SeaTalk-ng, Bluetooth, WiFi, USB.
Other Functions	Optional AIS (receiver required); optional satellite weather & audio (receiver and subscription required); thermal night vision, engine monitoring (sensors required); IP video input
Dimensions	9.7" x 6.2" x 3"
Warranty	Three year, with on-line registration

• Axiom+ Display
• Mounting bracket w/ knobs
• Rear mount bracket
• Suncover
• Flush mount gasket
• DeviceNet to SeaTalk-ng adapter cable
• Power/NMEA2000 cable
• Installation hardware
• Documentation

20% restocking fees apply. All items and services remain property of Rigel Marine Services Inc until paid in full. No return on assembled parts.

In store pick-up available. We also ship to out customers using their preferred shipping method. Shipping fees apply.
